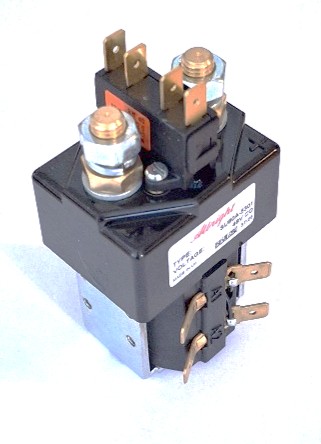

Albright SU80 24V/48V — DC, CO Contactor
Single-pole, single-throw (SPST), normally open, double-breaking contacts, continuous duty — thermal current rating (Ith) 150 A (interrupted) / 200 A (uninterrupted) for DC motor applications on AGVs and industrial vehicles. Horizontal or vertical mounting via M4 tapped holes or mounting brackets.
AGV Electrix Article number 24V: 200463
AGV Electrix Article number 48V: 200462
(Mounting bracket not included)
The SU80 series is designed for direct-current loads, especially traction motors on electric vehicles. It features double-breaking main contacts with silver alloy tips for weld resistance and low contact resistance. Mounting is straightforward via M4 tapped holes or mounting brackets; contact studs are M8.
Key benefits
- High-current DC contactor for traction and hydraulic functions
- Double-breaking silver alloy contacts — weld resistant, serviceable design
- Available with magnetic blowouts (B) and included auxiliary contacts (A)
- Easy installation — Bracket mounting, M8 studs; vertical or horizontal mounting
- Designed for interrupted and uninterrupted DC loads
Specifications
| Device type | SP — ST (single pole, single throw; normally open; double-breaking) |
| Coil voltage | 24V DC or 48V DC |
| Continuous current rating | Thermal current rating (Ith): 150 A (interrupted) / 200 A (uninterrupted) |
| Mounting | Horizontal or vertical via M4 tapped holes or mounting brackets |
| Main contact studs | M8 |
Protection diode
We always include a protection (flyback) diode for the contactor coil supply. The diode is installed in parallel across the coil (when needed) and protects your system from voltage spikes when the coil is de-energized. This reduces the risk of interference, protects PLC/outputs, and can extend the service life of your electronics.
Applications
AGVs and industrial electric vehicles: traction contactor, pump/hydraulic drive, battery switching. Suitable for resistive, capacitive and inductive DC loads within ratings.
To simplify ordering, the SU80 can be configured with optional features
Options & Variants — simple guide
Albright SU-contactors can be supplied with different options. You don’t need to know the codes — tell us what the contactor must do, and we’ll match the right variant and send a quote, or if you already have a contactor send us a photo of the type label.
Common options (examples):
• Auxiliary contact — extra signal output that shows if the main contact is open/closed.
• Magnetic blowouts — improves DC breaking capacity for higher inductive loads.
• Sealed housing (IP66) — dust/water protection for harsh environments.
• Coil voltage — e.g. 24 V or 48 V (other voltages available).
• Mounting & terminals — mounting holes and main studs (e.g. M8/M10) vary by model.
Note: Not every SU model supports every option, and some combinations are not available — this is normal.
Three quick questions to choose:
1) Current & load: required continuous current and load type (motor, resistive, inductive)?
2) Environment: dust, moisture, outdoor? (Do you need IP66?)
3) Control & signal: coil voltage (24/48 V?) and do you need an auxiliary contact?
Need a quote?
Send what you know (e.g. “SU60, 24 V”) plus the answers above — we’ll propose the right variant with a quote and lead time.
Note: Exact Albright order codes (-xxxx) define coil/suppression/mounting details. We confirm all options with you at quotation.
Other contactor variants
Looking for different contactor? Choose a variant below or request a quote and we’ll guide you.
| Type | P/N | Info |
| Albright SU60 | 200460 | 48 V DC, CO |
| Albright SU60 | 200461 | 24 V DC, CO |
| Albright SU80 | 200462 | 48 V DC, CO |
| Albright SU80 | 200463 | 24 V DC, CO |
| Albright SU190 | 200464 | 48 V DC, CO |
| Albright SU190 | 200465 | 24 V DC, CO |
| Albright SU280 | 200466 | 48 V DC, CO |
| Albright SU280 | 200467 | 24 V DC, CO |
| Albright SW60 | 200446 | 48 V DC, CO |
| Albright SW60 | 200447 | 24 V DC, CO |
| Albright SW80 | 200444 | 48 V DC, CO |
| Albright SW80 | 200445 | 24 V DC, CO |
| Albright SW84 | 200456 | 48 V DC, CO |
| Albright SW84 | 200457 | 24 V DC, CO |
| Albright SW88 | 200458 | 48 V DC, CO |
| Albright SW88 | 200459 | 24 V DC, CO |
| Albright SW180 | 200448 | 48 V DC, CO |
| Albright SW180 | 200449 | 24 V DC, CO |
| Albright SW181 | 200450 | 48 V DC, CO |
| Albright SW181 | 200451 | 24 V DC, CO |
| Albright SW200 | 200452 | 48 V DC, CO |
| Albright SW200 | 200453 | 24 V DC, CO |
| Albright SW201 | 200454 | 48 V DC, CO |
| Albright SW201 | 200455 | 24 V DC, CO |
Can’t find what you’re looking for? We supply many more variants. Request a quote and we’ll source the exact product you need.
Get a quick quote
Send the P/N or a photo of the contactor label and we’ll confirm the exact variant and deliver fast from Sweden.
