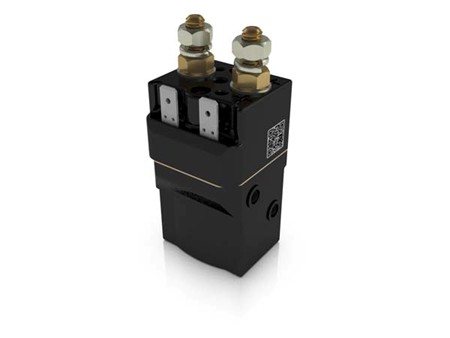

Albright SW60 24V/48V — DC, CO Contactor
Single-pole, single-throw (SPST), normally open, continuous duty — thermal current rating (100%) up to 80 A for DC motor applications on AGVs and industrial vehicles. Vertical or horizontal; via M4 tapped holes or brackets
AGV Electrix Article number 24V: 200447
AGV Electrix Article number 48V: 200446
(Mounting bracket not included)
The SW60 series is designed for direct-current loads, especially traction motors on electric vehicles. It features double-breaking main contacts with silver alloy tips for weld resistance and low contact resistance. Mounting is straightforward via M4 tapped holes; contact studs are M6.
Key benefits
- High-current DC contactor for traction and hydraulic functions
- Double-breaking silver alloy contacts — weld resistant, serviceable design
- Available with magnetic blowouts (B) and auxiliary contacts (A)
- Easy installation — M4 mounting, M6 studs; vertical or horizontal mounting
- Designed for interrupted and uninterrupted DC loads
Specifications
Device type | NO — SP — ST (single pole, single throw, normally open; double-breaking contacts) |
Coil voltage | 24V DC or 48V DC |
Continuous current rating | Thermal current rating (100%): 80 A |
Mounting | Vertical or horizontal; via M4 tapped holes or brackets |
Main contact studs | M6 |
Protection diode
We always include a protection (flyback) diode for the contactor coil supply. The diode is installed in parallel across the coil (when needed) and protects your system from voltage spikes when the coil is de-energized. This reduces the risk of interference, protects PLC/outputs, and can extend the service life of your electronics.
Applications
AGVs and industrial electric vehicles: traction contactor, pump/hydraulic drive, battery switching. Suitable for resistive, capacitive and inductive DC loads within ratings.
To simplify ordering, the SW60 can be configured with optional feature letters:
• A = Auxiliary contact
• B = Magnetic blowouts (higher DC voltage interruption capability)
• P = Sealed housing (IP66)
Combine letters as needed (e.g., AP, BP, AB, ABP).
| Variant | A | B | P | What it means |
| SW60 (base) | — | — | — | Standard open-frame unit |
| SW60A | ✓ | — | — | Adds auxiliary contact |
| SW60B | — | ✓ | — | Adds magnetic blowouts (DC arc control) |
| SW60P | — | — | ✓ | Sealed housing (IP66) |
| SW60AB | ✓ | ✓ | — | Aux + blowouts |
| SW60AP | ✓ | — | ✓ | Aux + sealed (IP66) |
| SW60BP | — | ✓ | ✓ | Blowouts + sealed (IP66) |
| SW60ABP | ✓ | ✓ | ✓ | Aux + blowouts + sealed (IP66) |
Note: Exact Albright order codes (-xxxx) define coil/suppression/mounting details. We confirm all options with you at quotation.
Other contactor variants
Looking for different contactor? Choose a variant below or request a quote and we’ll guide you.
| Type | P/N | Info |
| Albright SU60 | 200460 | 48 V DC, CO |
| Albright SU60 | 200461 | 24 V DC, CO |
| Albright SU80 | 200462 | 48 V DC, CO |
| Albright SU80 | 200463 | 24 V DC, CO |
| Albright SU190 | 200464 | 48 V DC, CO |
| Albright SU190 | 200465 | 24 V DC, CO |
| Albright SU280 | 200466 | 48 V DC, CO |
| Albright SU280 | 200467 | 24 V DC, CO |
| Albright SW60 | 200446 | 48 V DC, CO |
| Albright SW60 | 200447 | 24 V DC, CO |
| Albright SW80 | 200444 | 48 V DC, CO |
| Albright SW80 | 200445 | 24 V DC, CO |
| Albright SW84 | 200456 | 48 V DC, CO |
| Albright SW84 | 200457 | 24 V DC, CO |
| Albright SW88 | 200458 | 48 V DC, CO |
| Albright SW88 | 200459 | 24 V DC, CO |
| Albright SW180 | 200448 | 48 V DC, CO |
| Albright SW180 | 200449 | 24 V DC, CO |
| Albright SW181 | 200450 | 48 V DC, CO |
| Albright SW181 | 200451 | 24 V DC, CO |
| Albright SW200 | 200452 | 48 V DC, CO |
| Albright SW200 | 200453 | 24 V DC, CO |
| Albright SW201 | 200454 | 48 V DC, CO |
| Albright SW201 | 200455 | 24 V DC, CO |
Can’t find what you’re looking for? We supply many more variants. Request a quote and we’ll source the exact product you need.
Get a quick quote
Send the P/N or a photo of the contactor label and we’ll confirm the exact variant and deliver fast from Sweden.
Contact
info@agvelectrix.com
+46 (0)300 68 15 88
+46 (0)76 297 88 38
Trademarks: Albright is a registered trademark of its respective owner. AGV Electrix AB is an independent supplier; product names are used for identification only
Performance figures are guideline values per Albright datasheets and may vary with application
