IV2800 — Incremental Rotary Encoder (Ø28 mm miniature)
Optical miniature encoder • up to 1,024 ppr for AGV/AMR — fast delivery from Sweden
AGV Electrix Article number: 200439

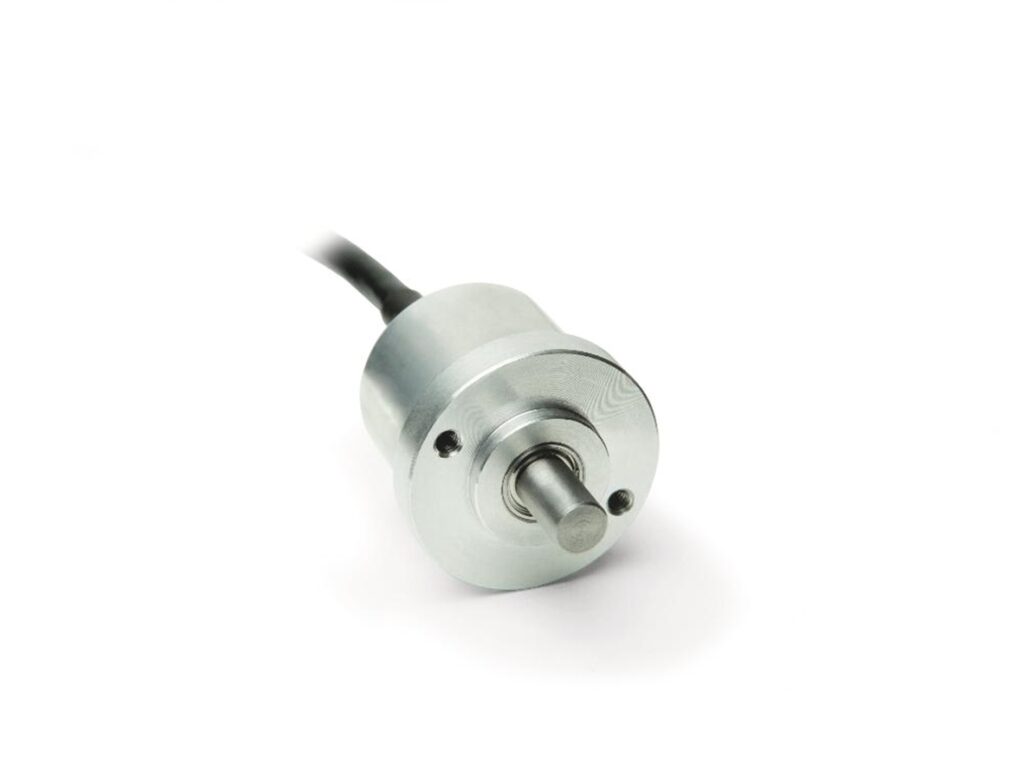

The IV2800 is a compact, robust incremental encoder designed for very confined spaces. Despite the small Ø28 mm design it offers durable bearings, short‑circuit‑proof outputs and effective strain relief for reliable operation in tough environments.
Key benefits
- Very small design: Ø28 mm housing
- Resolutions up to 1,024 pulses per revolution
- Robust bearing construction for long life
- Short‑circuit‑proof outputs (PP/OP/LD5)
- Up to 12,000 rpm (mechanical)
- UL 61010‑1 approval (File E503367)
Specifications
| Type | Incremental optical encoder, solid shaft |
| Model | IV2800 |
| Resolution | 16…1,024 ppr (see configuration) |
| Speed (max. mechanical) | ≤12,000 rpm |
| Pulse frequency | PP/OP: ≤160 kHz • LD5: ≤300 kHz |
| Supply voltage (PP/OP) | 8…30 V DC (reverse‑polarity protected) |
| Supply voltage (LD5) | 5 V DC ±5% |
| Current consumption | PP/OP: ~50 mA (no load) • LD5: ≤90 mA |
| Outputs | PP (push‑pull), OP (push‑pull with inversion), LD5 (LineDriver 5 V) |
| Signal levels | PP/OP High ≥UB–3.0 V, Low ≤0.5 V • LD5 High ≥2.5 V, Low ≤0.5 V |
| Protection category | IP65 (housing side), IP64 (shaft side) |
| Operating temperature | –20…+85 °C |
| Shock / Vibration | 1000 m/s² (6 ms) • 100 m/s² (10–2000 Hz) |
| Housing / Shaft | Aluminum housing • Stainless steel shaft |
| Shaft options | Ø5×10 mm (flat) • Ø6×10 mm |
| Cable sheath | PVC, ~Ø4.5 mm; bending radius 25 mm static / 75 mm dynamic |
| Weight | ~0.06 kg |
| Approvals | UL 61010‑1 (File E503367) |
Product configuration
To deliver the best fit for your application, IV2800 is available in multiple configurations. Pick the options below or tell us your required combination and we’ll quote the matching part number.
| Parameter | Code | Choices / Notes |
| Pulses per revolution | A | 16, 36, 50, 100, 200, 250, 360, 400, 500, 512, 1000, 1024 |
| Position of electrical connection | A / R | Axial (A) or Radial (R) |
| Cable length (m) | C | 00.5, 02.0, 03.0, 05.0, 08.0, 10.0, 15.0 |
| Output circuit | PP / OP / LD5 | PP push‑pull • OP push‑pull with inversion • LD5 LineDriver 5 V |
| Shaft diameter × length | 5×10 / 6×10 | Ø5×10 mm (flat) • Ø6×10 mm |
| Connection type | E1 | Open cable end |
Other encoder variants
Looking for a different encoder style or interface? Here are common alternatives we supply:
| Type | P/N | description |
| WV3600MR | 200437 | Absolute safety rotary encoder (CANopen/CANopen Safety, J1939 Safety). |
| IV5800 | 200438 | Incremental encoder, up to 5,000 ppr (solid shaft). |
| IV2800 | 200439 | Miniature incremental encoder (Ø28 mm). |
| AH25S | 200440 | Miniature single-turn absolute encoder (analog outputs). |
| WV5800M | 200241 | Absolute encoder for mobile machines (singleturn or multiturn; CANopen/J1939). |
Can’t find what you’re looking for? We supply many more variants and brands. Request a quote and we’ll source the exact product you need.
