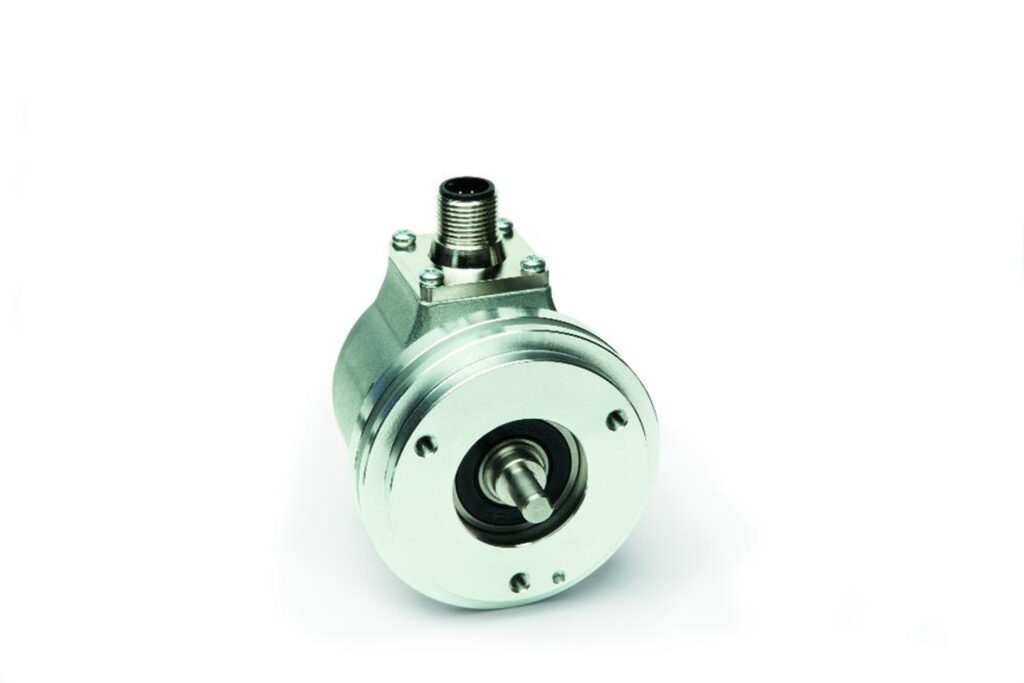

IV5800 — Incremental Rotary Encoder (Solid Shaft)
Robust optical standard encoder for AGV/AMR — fast delivery from Sweden
AGV Electrix Article number: 200438
The IV5800 is a proven, robust incremental encoder for industrial and mobile applications. With resolutions up to 5,000 pulses per revolution and multiple output circuits, connectors and mounting options, it’s a durable all‑rounder that fits a wide range of retrofit and OEM needs.
Key benefits
- Resolution up to 5,000 pulses/rev
- IP65 or IP66/IP67 protection
- –40…+85 °C operating temperature
- High shock (3,000 m/s²) and vibration (300 m/s²) resistance
- Robust bearing construction
- Multiple output circuits: Push‑Pull (PP), Open‑Collector (OP), LineDriver (LD)
- Flexible connections: M12, M23, or open cable end
Specifications
| Property | Value |
| Type | Incremental optical encoder, solid shaft |
| Model | IV5800 |
| Resolution | Up to 5,000 ppr |
| Supply voltage (PP/OP) | 10…30 V DC |
| Supply voltage (LD) | 5…30 V DC |
| Max pulse frequency | ≤300 kHz |
| Current consumption | typ. 40–50 mA, ≤90–100 mA (no load) |
| Output circuits | PP (push‑pull), OP, LD (line driver) |
| Signal levels | High ≥UB–1.0 V (PP/OP), High ≥2.5 V (LD); Low ≤0.5 V |
| Protection category | IP65 or IP66/IP67 |
| Operating temperature | –40…+85 °C |
| Speed (max) | Up to 12,000 rpm (IP65); up to 6,000 rpm (IP66/IP67) |
| Speed (continuous) | Up to 6,000 rpm (IP65); up to 3,000 rpm (IP66/IP67) |
| Shaft diameters × length | Ø6×10 mm, Ø8×15 mm, Ø10×20 mm |
| Shaft load rating | 100 N radial / 50 N axial |
| Housing | Die‑cast; shaft stainless steel |
| Weight | ≈0.4 kg |
| Approvals | UL 61010‑1 (File E503367) |
Product configuration
To deliver the best fit for your application, IV5800 is available in multiple configurations. Pick the options below or tell us your required combination and we’ll quote the matching part number.
| Parameter | Code | Choices / Notes |
| Pulses per revolution | A | 50, 64, 100, 200, 250, 256, 300, 360, 400, 500, 512, 800, 1000, 1024, 1200, 2000, 2048, 2500, 3600, 4000, 4096, 5000 |
| Output circuit | PP (push‑pull) / OP (push‑pull with inversion) / LD (LineDriver) | |
| Type of connection | E1 / E2 / E12 | Open cable end (E1); M23 plug 12‑pole (E2, OP/LD only); M12 plug 5‑pole (E12, PP only) |
| Position of electrical connection | A / R | Axial (A) or Radial (R) |
| Cable length | 01.0 … 20.0 | meters (E1 only) or OK (no cable; E2/E12) |
| Mounting type | M1 / M2 | Clamping flange (M1) or Servo flange (M2) |
| Shaft diameter × length | 6×10 / 8×15 / 10×20 | Ø6×10 mm, Ø8×15 mm, Ø10×20 mm |
| Protection category | IP65 / IP66/67 | Variant dependent |
Other encoder variants
Looking for a different encoder style or interface? Here are common alternatives we supply:
| Type | P/N | description |
| WV3600MR | 200437 | Absolute safety rotary encoder (CANopen/CANopen Safety, J1939 Safety). |
| IV5800 | 200438 | Incremental encoder, up to 5,000 ppr (solid shaft). |
| IV2800 | 200439 | Miniature incremental encoder (Ø28 mm). |
| AH25S | 200440 | Miniature single-turn absolute encoder (analog outputs). |
| WV5800M | 200241 | Absolute encoder for mobile machines (singleturn or multiturn; CANopen/J1939). |
Can’t find what you’re looking for? We supply many more variants and brands. Request a quote and we’ll source the exact product you need.
