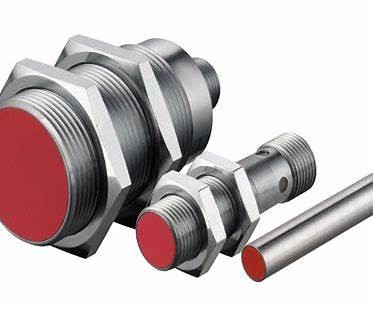

Leuze MDS 508 MM/4NO-100 — Magnetic Proximity Sensor
Magnetic proximity sensor for AGV/AMR — fast delivery from Sweden
AGV Electrix Article number: 200540
The Leuze MDS 508 MM/4NO-100 is a durable and compact magnetic proximity sensor designed for reliable detection of magnetic fields in AGV and industrial automation environments. Unlike inductive sensors, the MDS Series operates through non-metallic materials such as plastic or stainless housings, making it ideal for enclosed or shielded installations. With IP67 protection, a robust M8 design, and high sensing accuracy, it ensures consistent operation even in harsh industrial conditions.
Key benefits
- Detects magnetic fields through non-metallic materials (e.g., plastic or stainless housings)
- Compact M8 housing for easy integration in AGV and robotics systems
- Insensitive to dirt, dust, oil, and moisture (IP67-rated)
- Maintenance-free, non-contact operation for long service life
- High switching frequency for dynamic detection tasks
- Wide voltage range (10–30 V DC) compatible with standard AGV systems
- PNP Normally Open output for universal integration
- Ideal replacement for reed switches with enhanced reliability
Specifications – MDS 508 MM/4NO-100
| Type | Magnetic proximity sensor, Non-contact magnetic field detection |
| Model | IS 208 MM/4NO-100 |
| Sensing distance | Up to 8 mm |
| Output type | PNP, Normally Open (NO) |
| Supply voltage | 10–30 V DC |
| Switching frequency | Up to 1 kHz, Fast and reliable response time |
| Protection class | IP67, Resistant to dirt, oil, and vibration |
| Housing material | Stainless steel |
| Operating temperature | –25 … +70 °C |
| Connection | M12 connector or cable version |
| Installation type | Flush mountable |
Suitable for AGV Applications
• End-stop and lift-position detection
• Docking position and charger alignment
• Wheel or steering position verification
• Sensor feedback in non-metallic housings or covered installations
Alternative Use Cases
The MDS 508 MM/4NO-100 is also widely used in:
• Automated warehouse shuttles and conveyor gates
• Robotic grippers and motion axes
• Safety interlocks in machinery and mobile platforms
Other variants
If your application demands different sensing range, beam geometry, or interface. Choose a variant below or request a quote and we’ll guide you
| Type | P/N | Description |
| MDS 512 MM/4NO-200 | 200541 | M12 housing, extended 10 mm range |
| MDS 530 MM/4NO-300 | 200542 | M18 housing, 15 mm range |
| MDS 540 MM/4NO-400 | 200543 | M30 housing, up to 25 mm sensing range |
| MDS 508 ML/2NC-100 | 200544 | NPN Normally Closed variant for specific controller inputs |
Can’t find what you’re looking for? We supply many more variants and brands. Request a quote and we’ll source the exact product you need.
Included / Accessories
Included: Lock nuts and quick-installation guide. Optional accessories include magnetic targets, mounting brackets, and cable assemblies.
